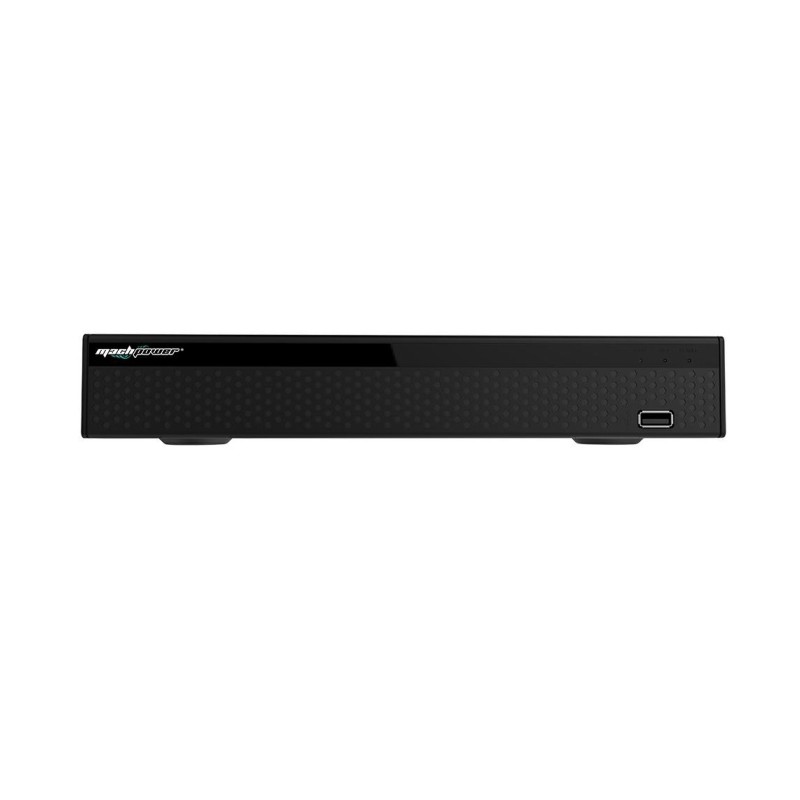

SISTEMA DI SORVEGLIANZA XHVR 4 CANALI 5IN1 VS-XHVR4C5MN-305
85,38 €
Tasse incluse
Spedizione Gratuita!
| System | ||
| Main Processor | MC6630 | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | Normal Mode= Analog= 4 x (TVI/AHD= 5M@12fps; AHD/TVI/CVI= 4M@15fps; AHD/TVI= 3M@18fps; | |
| AHD/TVI/CVI= 1080P/720P; Analog= 960H) | ||
| Analog+Network= 2 x Analog (TVI/AHD= 5M@12fps; AHD/TVI/CVI= 4M@15fps; AHD/TVI= 3M@18fps; | ||
| AHD/TVI/CVI= 1080P/720P; Analog= 960H) + 4 x network (MAX 2MP) | ||
| Network= 9 x 5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤48M) | ||
| Input | 4CH BNC | |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network | |
| Output | 1 HD,1 VGA | |
| Audio | ||
| Input | 1 Channel, RCA | |
| Two-way Audio | No | |
| Output | 1 Channel, RCA | |
| Alarm | ||
| Sensor Input | Np | |
| Output | No | |
| Motion Detection | 4 Channel(max 9 Channel in pure network mode | |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) | |
| Email Alarm | Send Image to The Designated E-mail | |
| PTZ | ||
| Interface | RS485 | |
| Protocol | Pelco-D, Pelco-P | |
| Baud Rate | 110~921600 | |
| Address | 0~255 | |
| Display | ||
| VGA | 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz | |
| HD Output | 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, | |
| 1280 × 720 /60Hz,1024 × 768 /60Hz | ||
| Display Split | 9 Channel/4 Channel / 1Channe | |
| Privacy Masking | 3 Rectangular Zones (Each camera) | |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | |
| Recording | ||
| Video Compression | H.265/H.265+/H.264/H.264+ | |
| Audio Compression | G.711U/G.711A | |
| Resolution | 5MP_Lite(1296×1952),4MP_Lite(1280×1440),3MP_Lite(1024×1536),1080N(960×1080),720P(1280×720), | |
| Video Quality | Lowest/Low/Ordinary/Good/Better/Best | |
| Record Rate | Analog: PAL:Half 1080P(960x1080 16 x 15fps),720P(1280×720 16 x 15fps), | |
| 960H(960×576 16 x 22fps) NTSC:Half 1080P(960x1080 16 x 15fps), | ||
| 720P(1280×720 16 x 15fps), 960H(960×480 16 x 22fps) | ||
| Pure IP(H.265): | ||
| PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, | ||
| 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps | ||
| NTSC:4k@8x30fps, 5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps, | ||
| 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps | ||
| Record Mode | Manual\Timer\Motion Detection | |
| Playback & Backup | ||
| Decode Capability | 2CH 1080P@30fps | |
| Sync Playback | Pure Analog= 4CH 960H@25fps, 4CH 720P@15fps, 4CH 1080N@15fps, 4CH 5M_LITE@6fps, | |
